Standing seam panel profiles engineered for performance and durability
PANEL PROFILES
STANDING SEAM PROFILES
We offer multiple standing seam panel profiles to suit your project requirements.

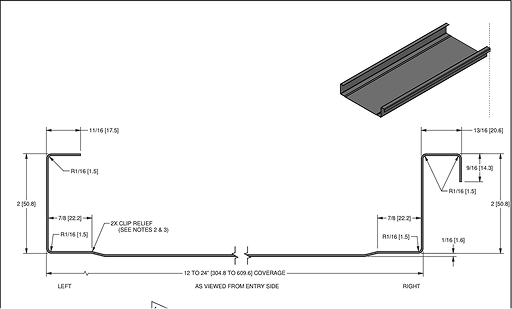

2" MECHANICAL SEAM
Panel Seam
2" high
Panel Material
28 ga. to 22 ga. steel (painted, Galvalume, coated galvanized), .027″ to .040″ aluminum (painted), and 16 oz. to 20 oz. 3/4 hard copper
Panel Coverage
12" to 24"

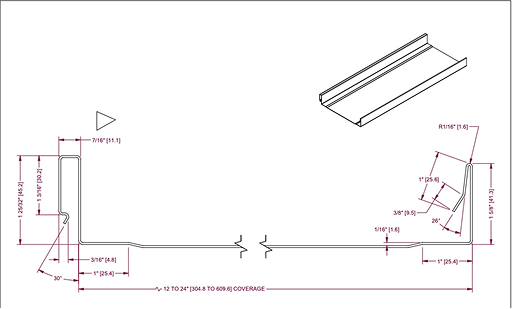

1 3/4" SNAP-LOCK
Panel Seam
1 3/4" high
Panel Material
28 ga. to 22 ga. steel (painted, Galvalume, coated galvanized), .027″ to .040″ aluminum (painted), and 16 oz. to 20 oz. 3/4 hard copper
Panel Coverage
12" to 24"

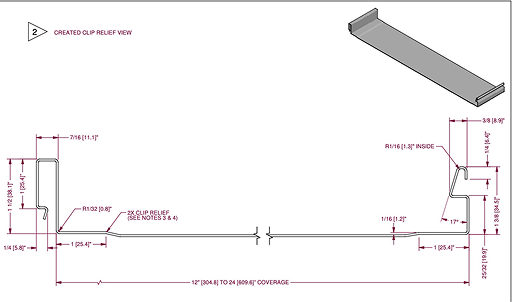

1 1/2" SNAP-LOCK
Panel Seam
1 1/2" high
Panel Material
28 ga. to 22 ga. steel (painted, Galvalume, coated galvanized), .027″ to .040″ aluminum (painted), and 16 oz. to 20 oz. 3/4 hard copper
Panel Coverage
12" to 24"
WALL & SOFFIT
WALL / SOFFIT PROFILES
Versatile wall and soffit panel profiles for a clean, finished look on any project.

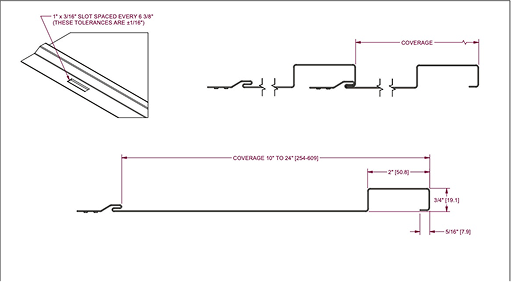

BOARD AND BATTEN
Material Usage
3 5/8" approx.
Materials Formed
26 ga. and 24 ga. Grade 50 steel, .027" and .032" aluminum

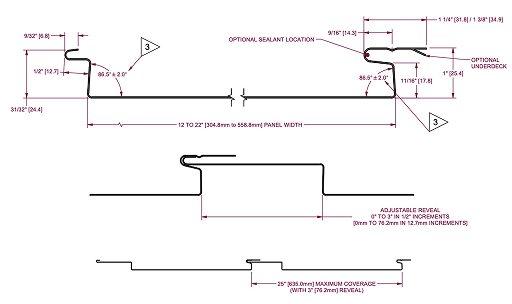

1" FLUSH WALL / SOFFIT / UNDERDECK
Panel Seam
1" high
Panel Material
28 ga. to 22 ga. steel (painted, Galvalume, coated galvanized), .027″ to .040″ aluminum (painted), and 16 oz. to 20 oz. 3/4 hard copper
Panel Width
12" to 22"; 25" maximum coverage with 3" reveal
